Rail Specifications
- White cedar, hand-peeled, sanded
- Can be purchased by the piece, or with rail sections pre-assembled
- Specify if for interior application or exterior
- Provide us with a materials list
- 30% of total amount for order due to confirm;
- allow 3-6 months lead time from the time we receive your deposit (this is because from May through October we are out in the field doing the pressure washing, staining, or repairs therefore not in the shop)
Specifications

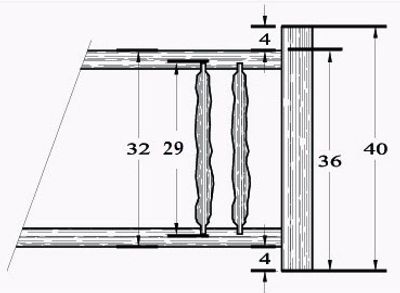

Log Spindles
• 29” long
• 2-4” diameter
• tenon is 1-1/4” x 2-1/2” long
Low Maintenance Aluminum Spindles
• 30” long
• 3/4” diameter iption about this item
Top/bottom rails
• 3-5" diameter
• lengths up to 8'0"
Rail Section Options
Standard Rail Assembly
• drilled an average 8" on center
• allows for an average 5 1/2"
space between spindles
• assembled, ready to install
Less than 8' long: $24.00/ lineal foot
Greater than 8' long section: $27.50/ lineal foot
Code Rail Assembly
• drilled an average 6" on center
• allows for a maximum 4" space between spindles
• assembled, ready to install
Less than 8' long: $26.00/ lineal foot
Greater than 8' long section: $32.50/ lineal foot
Low Maintenance Aluminum Assembly
• spindles made from High-strength, lightweight, corrosion resistant aluminum, 3/4" x 30" long
• space between spindles priced for code rails
Less than 8' long: $22.00/ lineal foot
Greater than 8' long section: $27.50/ lineal foot
Miscellaneous Components
Handrail Pole
• 2-3" diameter
$2.75/ lineal foot
Standard Rail Post
• 4-1/2" to 5-1/2" diameter
• Round
• 40" long
$20.00 each
Longer Rail Post
• 5' long x 4-1/2" - 5-1/2" diameter
$30.00 each
• 8' long x 7" diameter
$48.00 each
Flattened On One Side
• to secure to wall
• up to 5' long
$40.00 each
Predrilled to Receive Flange
Add to post cost:
Drilling only @ $15.00/post
Drilling & flange hardware @ $25.00/post
